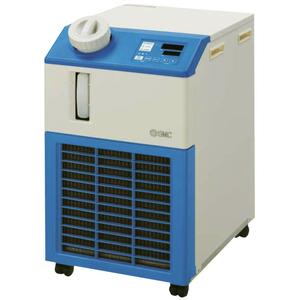

SMC HRS040-AN-20 Thermo-Chiller, Air Cooled

Description

SMC makes a great line of small, powerful chillers that use a lot of modern technology in an economical package.  The HRS series below is considered "general use", made for the widest range of applications.

These chillers actually contain a heater as well, to provide precise temperature control.  That means the coolant can be either heated or cooled, within the set temperature range and chiller capacity.

Power supply requirement is single phase 200 to 230 VAC, 50/60Hz.

This chiller is rated for circulating tap water or 15% glycol.

It is threaded for National Pipe Thread (NPT) fittings, standard in North America.



Specifications

Brand: SMC

Style: Thermo-chiller Air Cooled

Model #: HRS040-AN-20
Size: 14.9"W x 23.5"L x 26.7"H (377mmW x 592mmL x 676mmH)

Voltage: 230V/60Hz/1-phase
Weight: 117lbs (53kg)
Cooling Capacity: 1.2-Ton (4200W)
Set Temperature Range: 40F - 100F (5C-40C)
Rated Flow: 1.85GPM (7LPM)
Max Flow: 10.6GPM (40LPM)

Max Pump Head: 62ft (19m)
Pump output: 0.26HP
Tank size: 1.3gal (5L)
Circuit Protector: 20A
Rated Operating Current: 9.6A
Rated power consumption: 1.9kVA
Noise Level: 66dB
