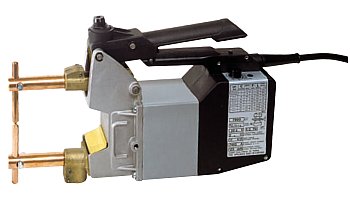

Tecna 7902 Hand Held Spot Welding Gun – 2.5 KVA (shipping included!)

The Tecna 7902 manually operated weld gun is a user-friendly, quality kit.  It is air cooled and clamps manually, so you don't have to wrestle air and water lines.  There are less expensive alternatives, with no parts available and no support (read; Harbor Freight, Chicago Electric) but the quality of the Tecna 7902 far surpasses them.  It is a great replacement for the Miller MSW and LMSW, which are no longer in production (MSW-41 & MSW-41T, LMSW-52 & LMSW-52T).

• Manually operated, no air or water lines to encumber movement.
• Versatile portable spot welder for auto body repair and maintenance shops.
• Synchronous built-in electronic timer with SCR from 2 to 65 cycles.
• Compensation circuit starts the timer only when there is a proper passage of current, which enables to perform on oxidised sheets, on surfaces with paint residues or on black sheets.
• Current control with phase shift adjustment to carry out difficult welds, on very thin thickness, on rods with reduced diameter, on stainless steel sheet and similar.
• Force adjustment with scale in daN.
• Additional arm couplings to provide larger opening between arms.
• All transformers are coated with F class insulation material. Tests are made using 4000 volts.
• Max weld current approximately 6,000-Amps (with shortest arms, narrowest gap).
• 94mm (3.7″) gap between the arms.
• 22mm (0.866″) diameter arms.
• Supplied complete with 125 mm (4.9″) long arms.
• Max electrode force with arm length L=125mm is 120daN (270lbsf)
• Max electrode force with arm length L=500mm is 38daN (85lbsf)
• Max 380 spots per hour (6-7 spots per minute, roughly need to wait 10 seconds between welds to dissipate heat).
• Choice of additional arm configurations are available, see technical data for details.  12mm diameter rod for electrodes standard.
• 7902 technical data
• 220V/60Hz/1-phase
• 20A delayed fuses @ 220VAC required
• 25lbs net weight (29lbs shipping weight)
• Please inquire for other arm configurations and gyroscopic suspension

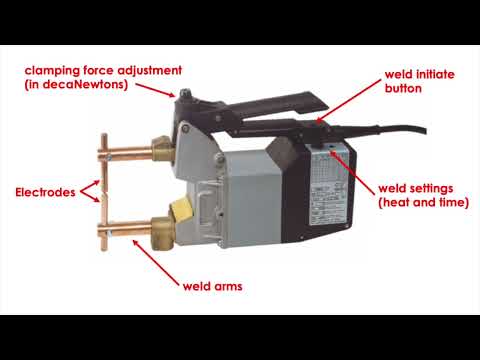

• You can see a short video about the 7902 here

Freight is included in the continental United States.  Please inquire for special pricing if outside of the continental US.
